Wall Top
Security
.png)
Revolutionary
Battery-free, Wireless

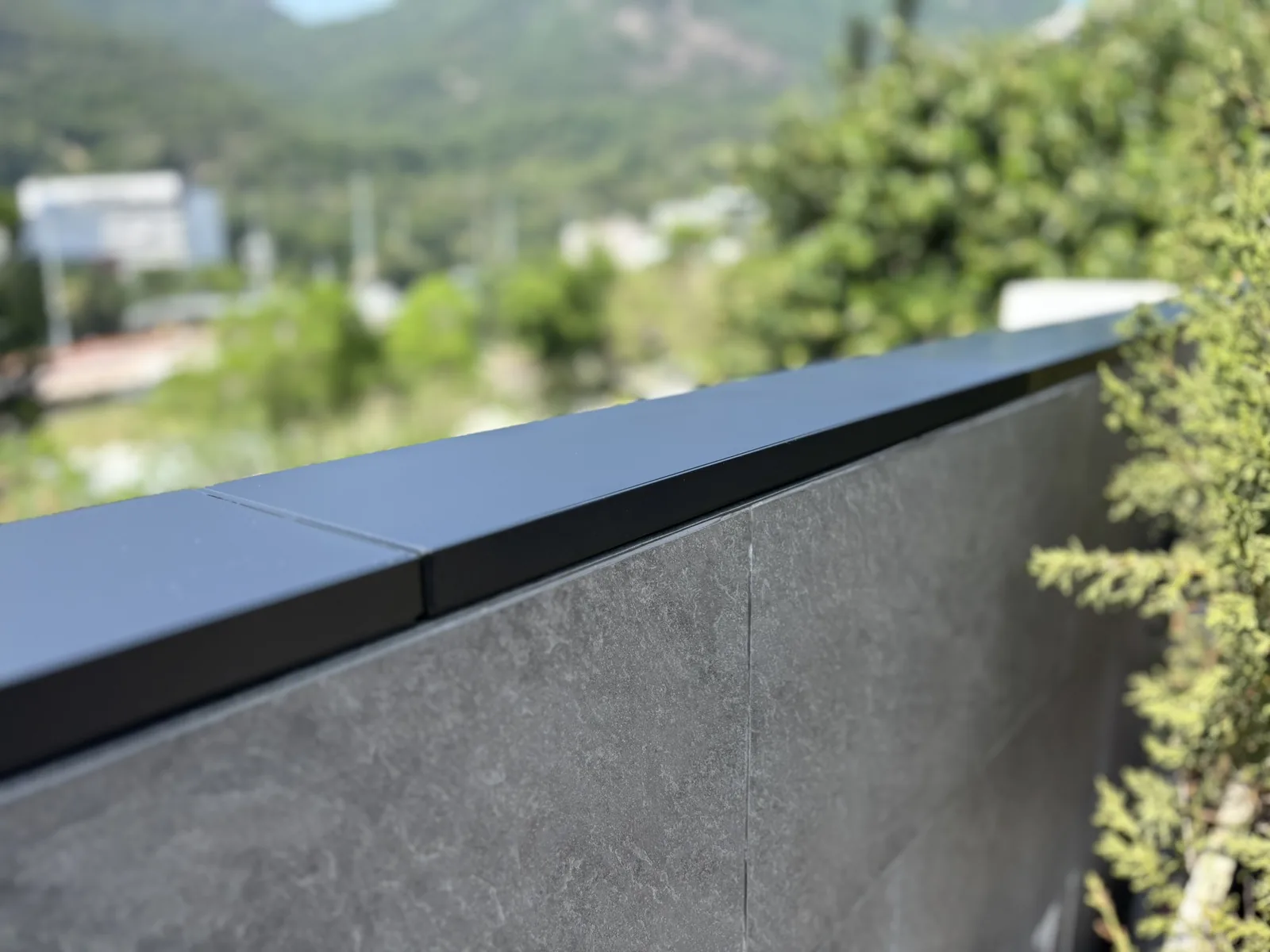

Wall Top Sensor

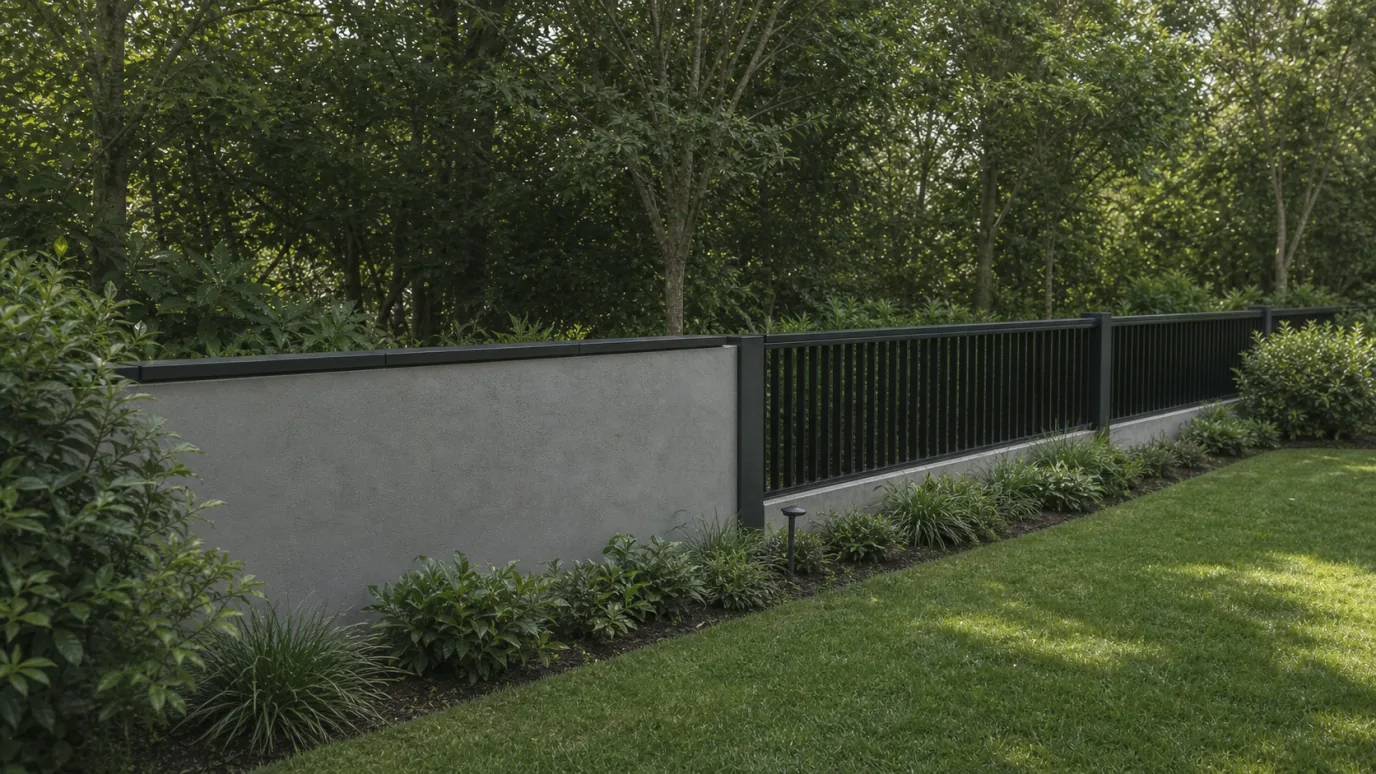

This sensor is designed to installed on top of perimeter wall, fence, gate and even glass balustrade, to detect intruder climbing over.
It senses the downward force when an intruder is pressing on it while climbing over.
The sensor will then transmit a wireless signal to the nearby alarm hub in order to generate local alarm deterence as well as mobile APP remote notifications.
Core Features
1. The Sensors

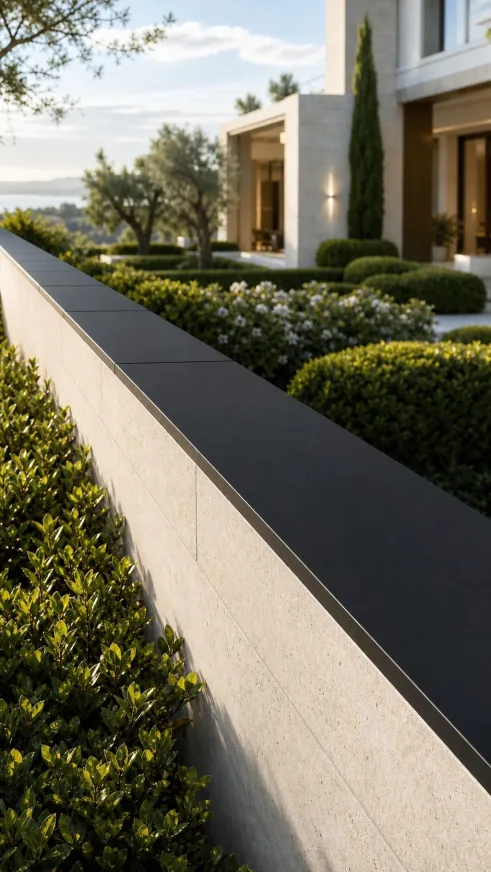

Wall Top

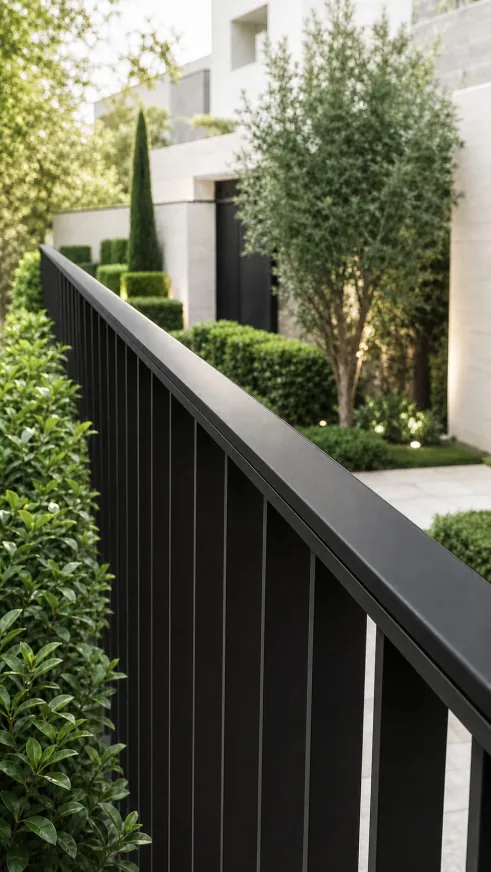

Fence Top

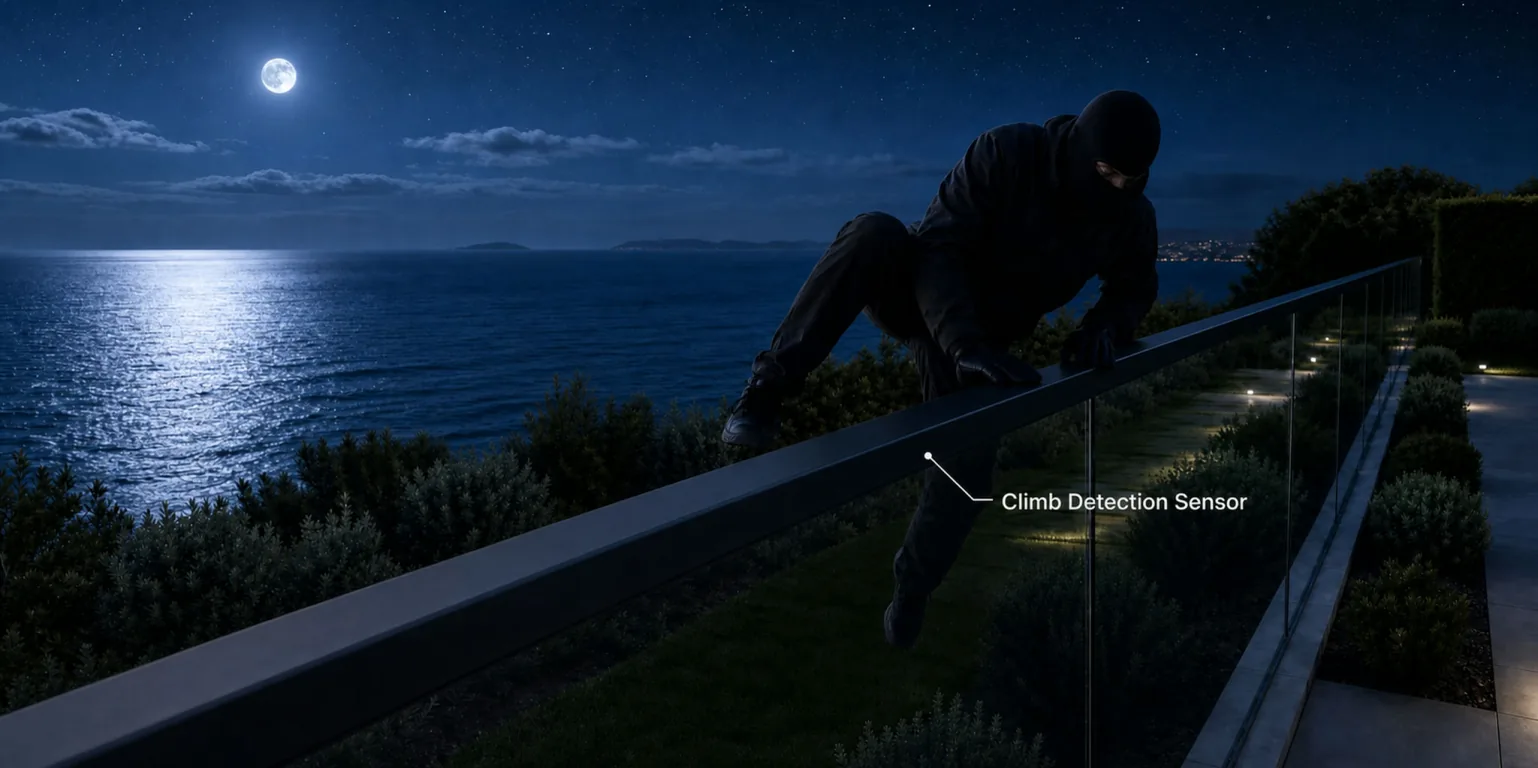

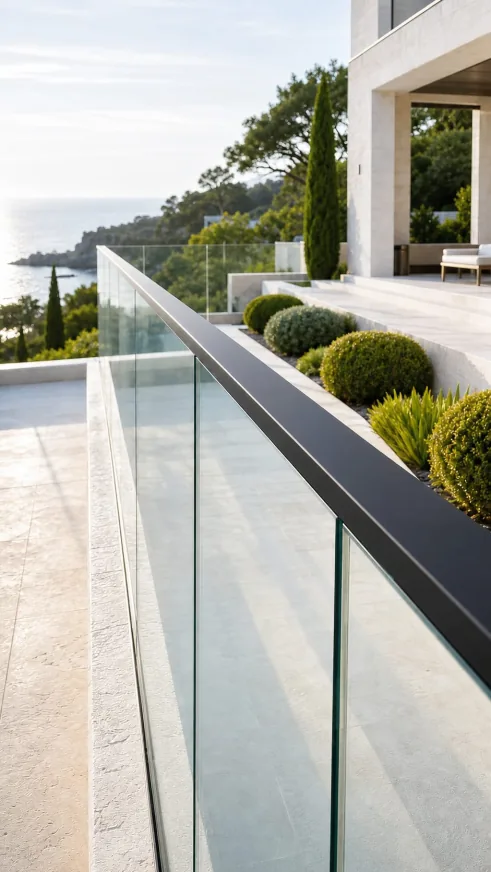

Glass Balustrade Top
2. How It Works
Climb Detection
Designed for outdoor usage, the sensor is certified with IP55 protection rating. Sufficient prevention against harmful dust buildup, and protection against low-pressure water jets from any directions.
The surface is made of high quality glass fiber which eliminates long term wear and tear caused by strong UV explosure.

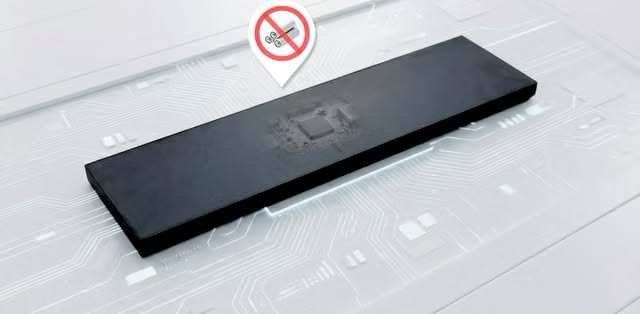

No Battery Required, Ever
Cutting edge energy harvesting technology that converts the downward pressing force into kinetic energy to transmit wireless alarm signal.
Outdoor wireless transmission range can range upto 80-100m if there is no interference or significant blockage.

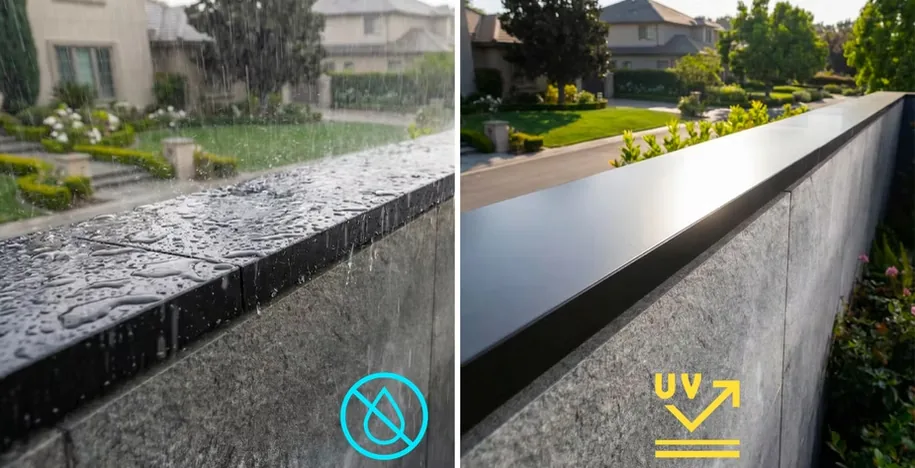

Weather Proof
Glass Fiber Exterior
Designed for outdoor use, the sensor is certified with IP55 protection rating.
Sufficient prevention against harmful dust buildup, and protection against low-pressure water jets from any directions.
The surface is made of high quality glass fiber which eliminates long term wear and tear caused by strong UV explosure.

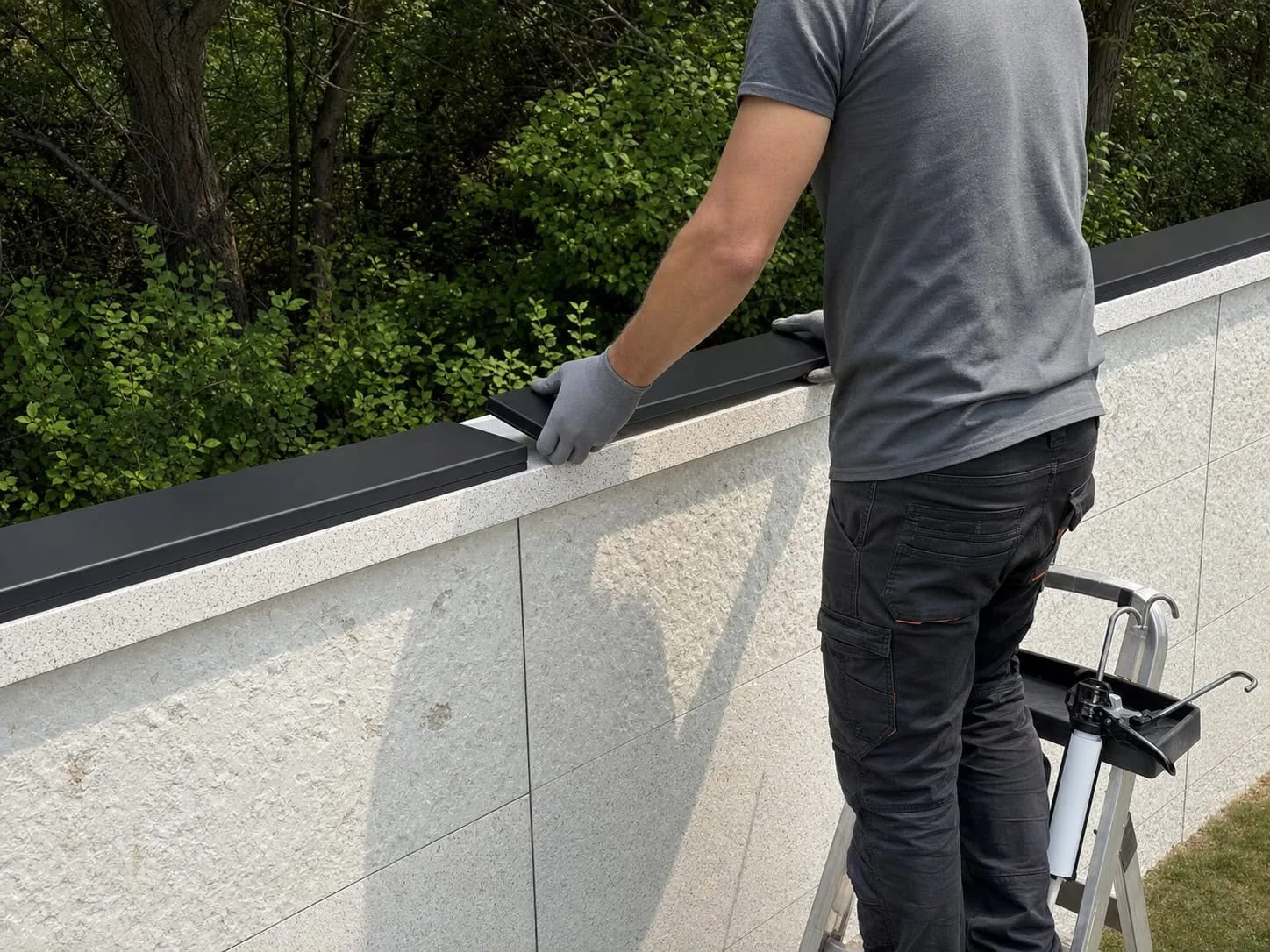

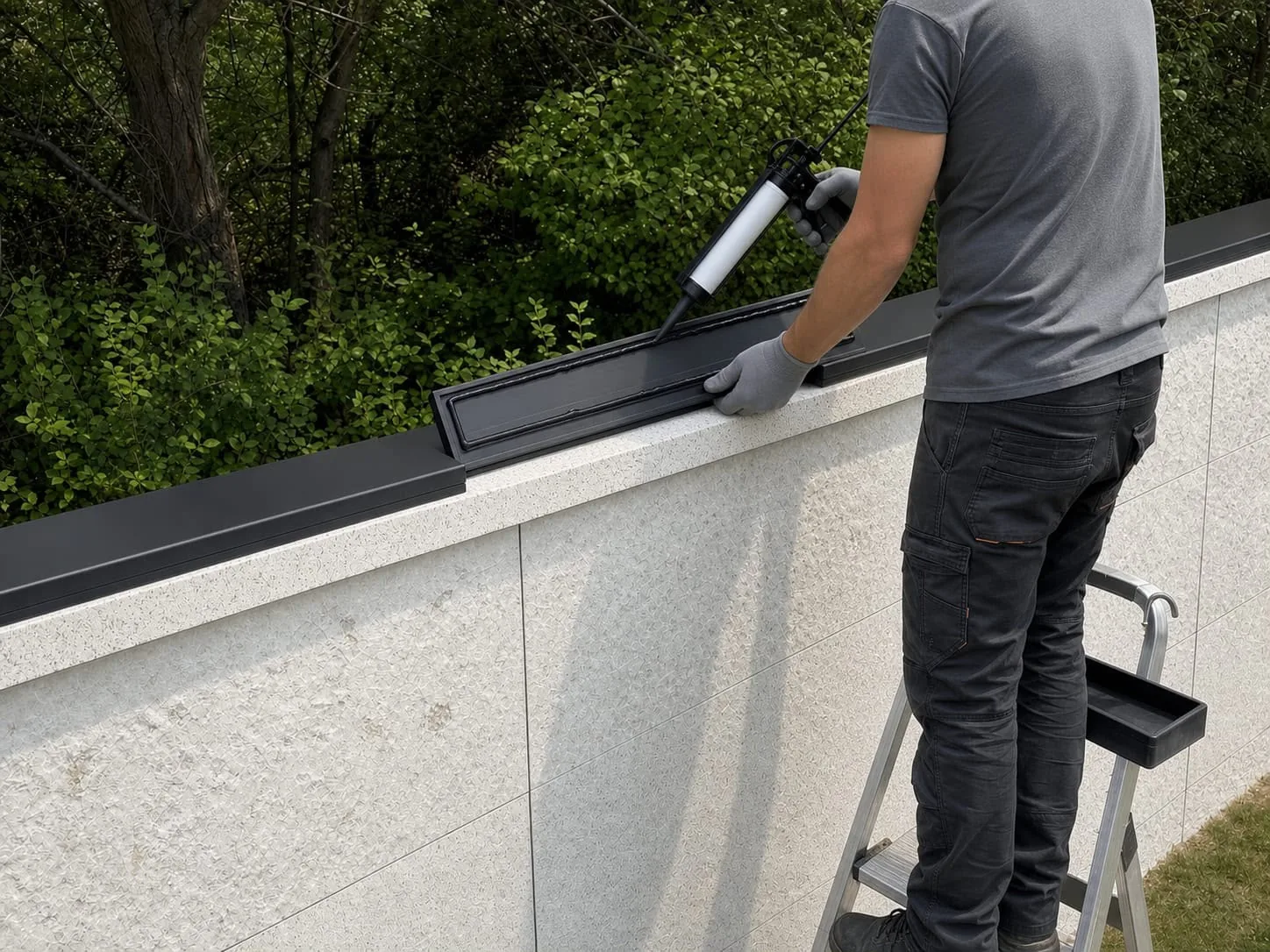

Easy Installation
Adhesive Sealant is All You Need
No hard fixing such as nut & bolt is required for the installation.

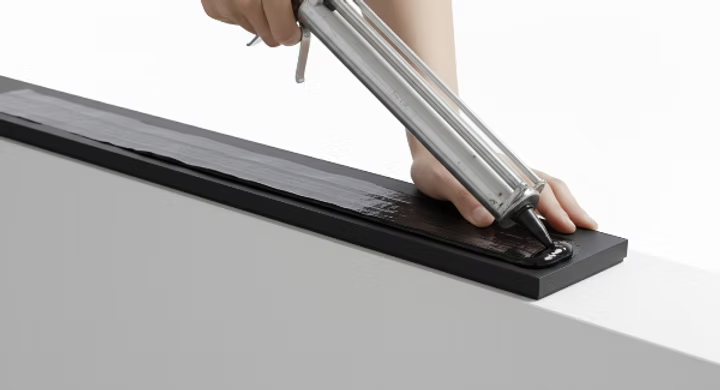

Simply apply sufficient amount of structural sealant at the bottom of the sensor, apply on the flat wall top surface.
Ultimate Reliability
with Zero False Alarms
Any object weighting less than 20KG will not trigger the alarm.
Fltering all environmental disturbance such as small animals, trees, etc.
Dimensions
Wall Top Sensor:
600(L)* x 150(W) x 15(T)mm
1KG
SKU:
1-01.jpg)
Fence Top Sensor:
500(L)* x 50(W) x 15(T)mm
0.4KG
SKU:
-05.jpg)
Glass Top Sensor:
500(L)* x 50(W) x 15(T)mm
0.5KG
SKU:
*(L) length can be customized into 200/300/400mm to cater for the ending section
Product Specs
Power Supply:
Working Humidity:
Working Temperature:
Storage Temperature:
Installation Method:
Transmission Frequency:
Transmission Range (Outdoor):
Transmission Range (Indoor):
Durability Test:
Shell Material:
Production Rating:
Transimission Rating:
Colour:
Self-powered
98%
-20°C to 65°C
-20°C to 65°C
Surface Mount
433MHz
80m
25m
>100,000 times
FRP
IP55
EN-------

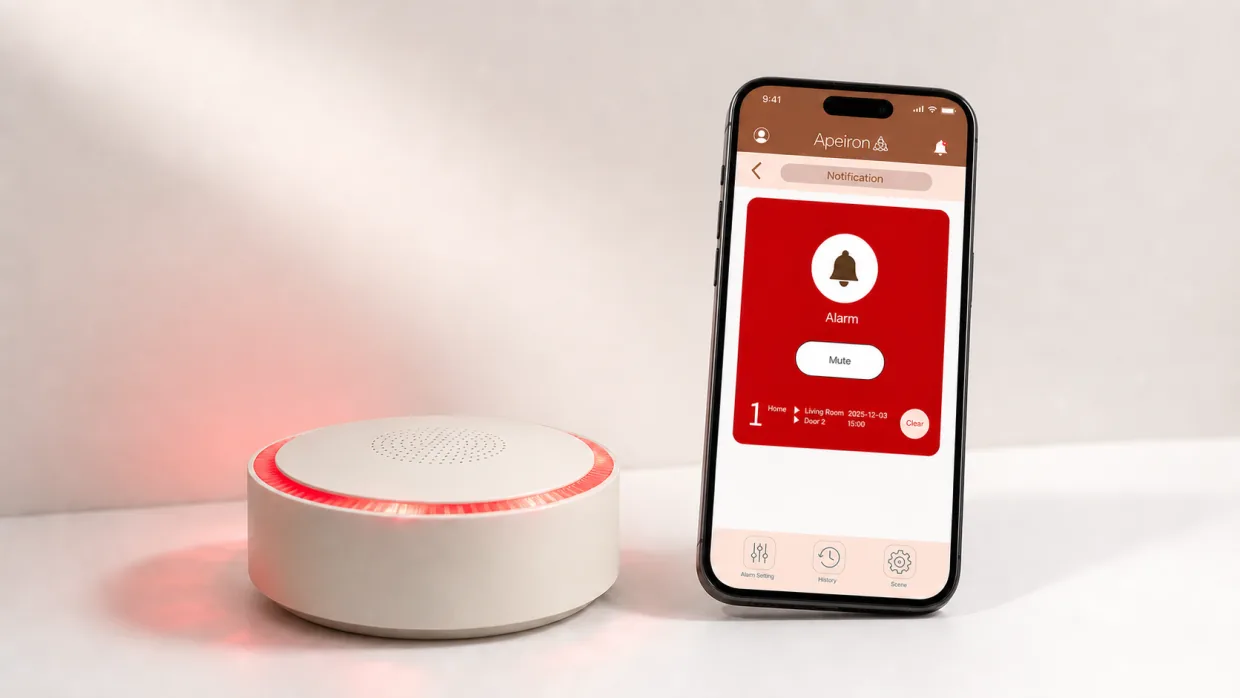

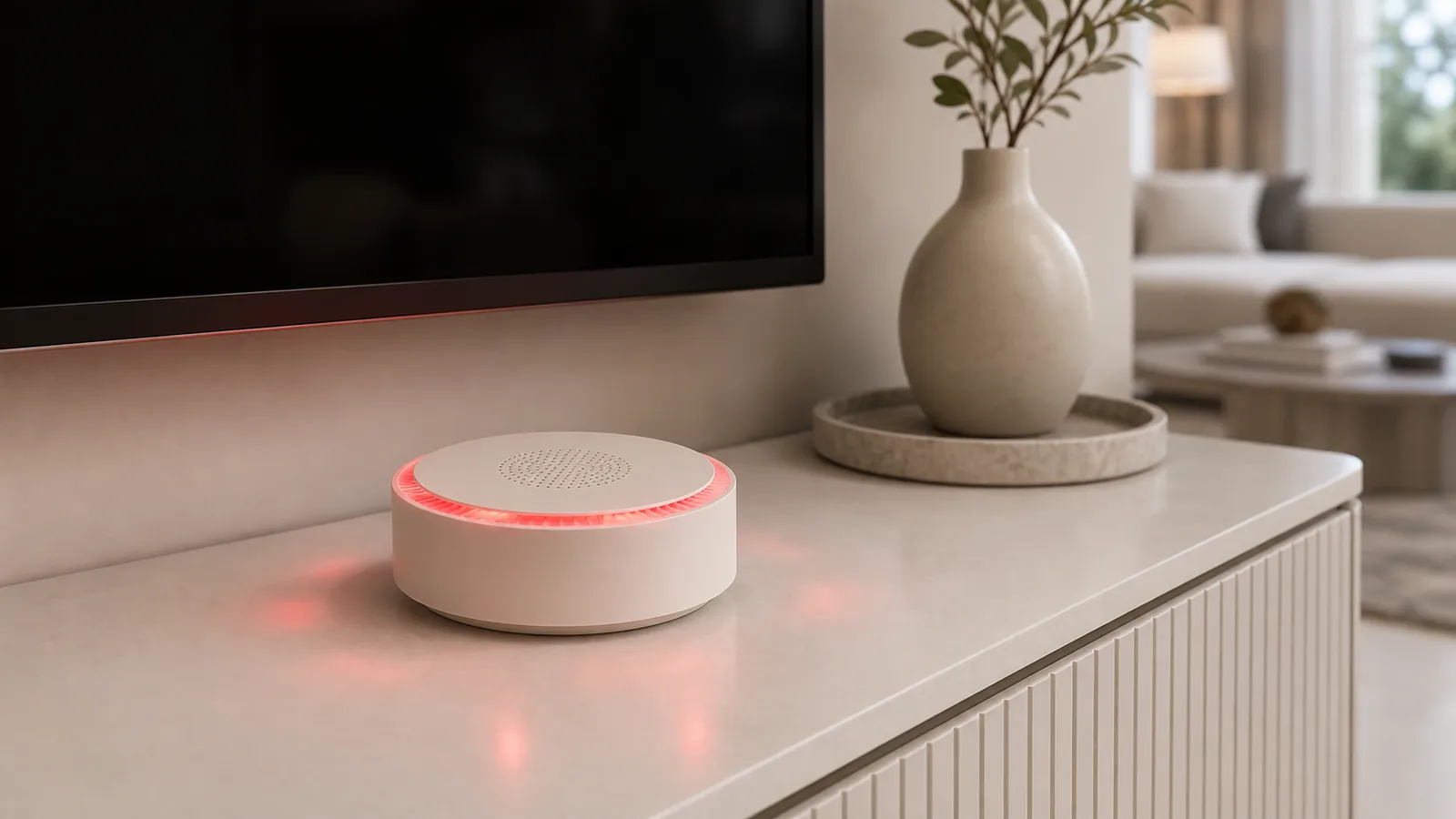

3. Mini Alarm Hub
Sensor Receiver
Can pair up to 30 sensors max.
Real-time Alarm
Siren & flash light alert to warn-off burglar
Manage via APP
Support Apeiron APP via local Wi-Fi connection
Transmission Range
Approx. 30m indoor, 100m outdoor
Dimension
90mm (Ø)
38mm (H)
Power Supply
12V DC
USB-C connection

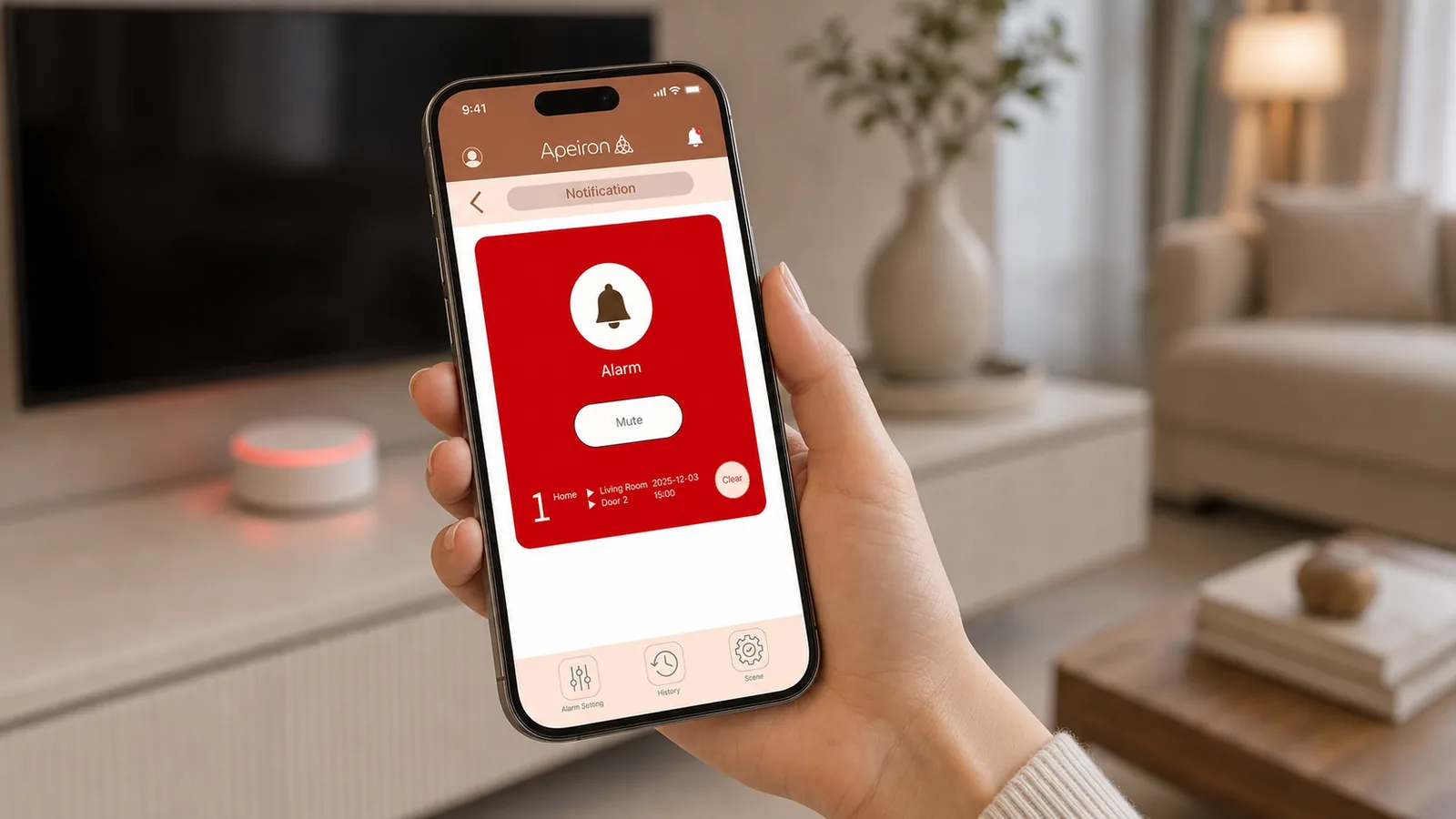

4. The Apeiron Guard Mobile App
One App, Full Control
You can manage sensor on/off, receive real time alarm notifications from multiple systems and locations, anywhere, anytime.
_edited.jpg)
The App is now available on:
